See other real early Underwater Robots here.

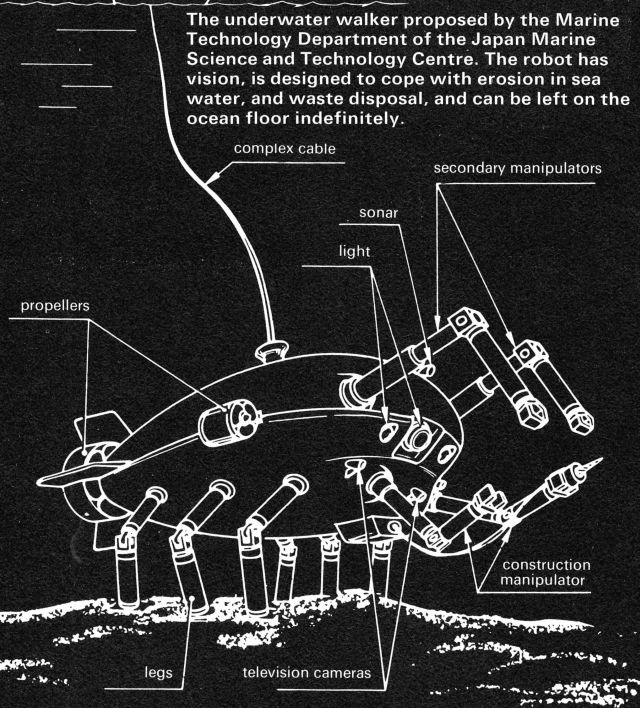

An early Artist's conception from the late 1970's. Source: Robots: Fact, Fiction, and Prediction by Jasia Reichardt, 1978.

Source: Field Test of Aquatic Walking Robot for Underwater Inspection
Junichi Akizono, Senior Research Engineer Mineo Iwasaki, Chief of Robotics Laboratory Takashi Nemoto, Member of Robotics Laboratory Osamu Asakura, Member of Robotics Laboratory – Machinery Division
Port and Harbour Research Institute, Ministry of Transport 1-1, Nagase 3-chome, Yokosuka, Japan 239
Summary

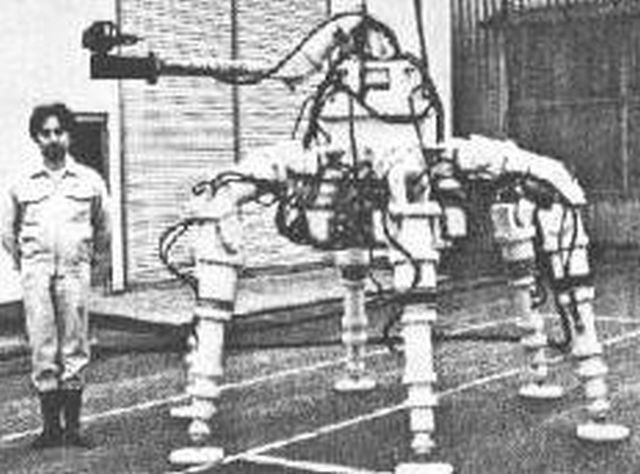

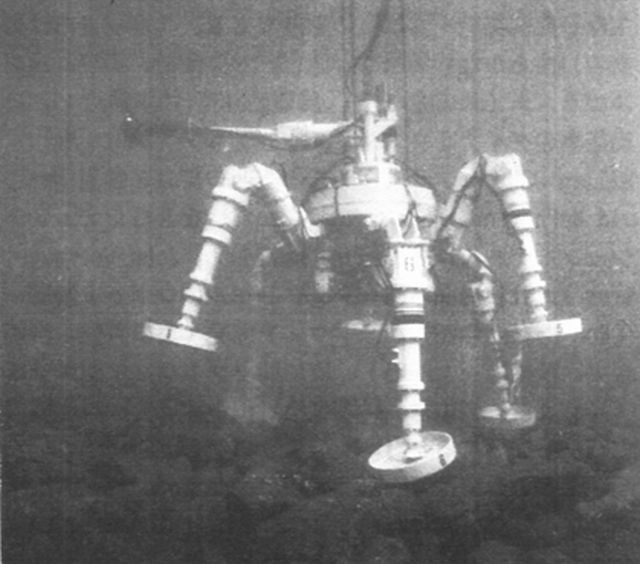

Aquatic walking robot named "AQUAROBOT" has been developed. Main purpose of the robot is to carry out underwater inspecting works accompanied with port construction instead of divers.
This robot has two main functions. One is the measurement of the flatness of rock foundation mound for breakwaters by the motion of the legs while walking. The other is the observation of underwater structure by TV camera.
AQUAROBOT is six-legged articulated "insect type" walking machine. Operation is fully automatic because this robot is so-called intelligent mobile robot. The working depth is up to 50m.
AQUAROBOT has an ultrasonic transponder system which is long base line type as a navigation device.    It also has an underwater TV camera with ultrasonic ranging device at the end of the manipulator on the body.
Through the field tests, the performance of the robot was proved to be sufficient for the practical use.
Test results are as follows.
Walking speed is 6.5m/min. on the flat floor in the test pool and 1.4m/min. on the irregular rubble mound in the sea. In the case of navigation, the positioning accuracy is within ±21cm.    The robot can measure the flatness of rubble mound by the motion of the legs with the same accuracy as divers.
key words: walking robot, underwater application, inspection work.

1. Introduction
The underwater inspection works accompanying port construction are carried out by manual labor of divers. However, the efficiency and safety of underwater activity are not sufficient because underwater condition is austere.    Increasing risks and lower working efficiency of port construction work at deeper sea area and shortage of divers make the situation worse. Therefore, it is necessary to develop the underwater inspection robot.
The robot which carries out the underwater inspection work taking the place of divers should have good stability, positioning ability and the ability to move on uneven seabed. Compared with free-swimming type, the bottom-reliant type is good for this purpose. We selected walking type, not wheel type or crawler type or Archimedean screw type, as the underwater Inspection robot.
We started this project from 1984 and have made 3 models up to now. The 1st one made in 1985 is an experimental model for overground test. The 2nd one made in 1987 is a prototype. The 3rd one made in 1989 is light-weight type.
In this paper, the walking test of prototype in the sea is mentioned.

2.Outline of AQUAROBOT
2.1 Hardware
AQUAROBOT is six-legged articulated "insect type" walking machine.    Each leg has three articulations, and they are driven semi-directly by DC motors which are built inside the leg. The articulations are mechanically independent to each other.
All the motions are controlled by a tiny lap-top micro computer (CPU 80286), which makes the robot be able to walk on irregular rough terrain. The measurement of the profiles of seabed is possible by recording the motion of the end of the legs while it walks.

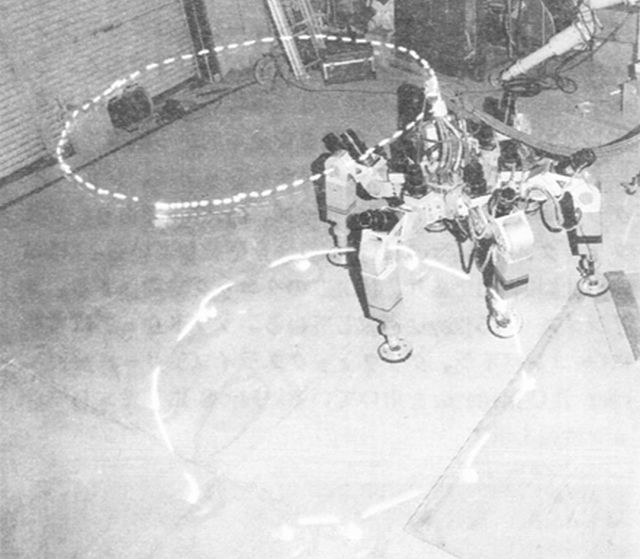

AQUAROBOT can walk in any direction without changing its quarter and can turn within its own space. Each leg is equipped with a tactile sensor on its end and there are two inclinometers, a gyrocompass, and a pressure sensor in the body.

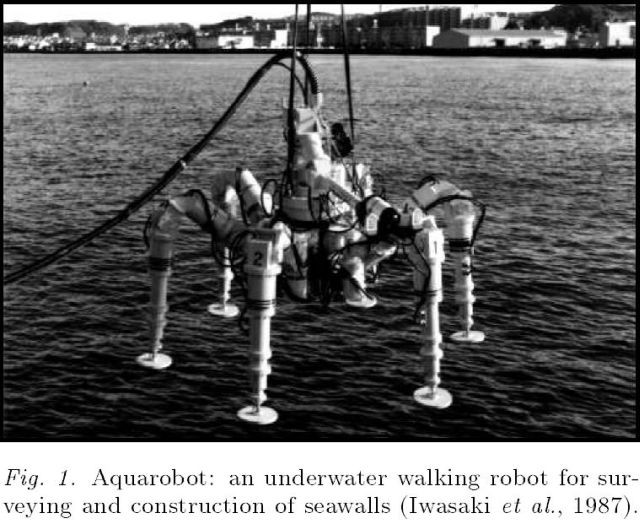

The prototype model has 150cm legs and weighs 857kg. It can be operated 5Om deep in the sea. A manipulator for underwater TV camera with ultrasonic ranging device is mounted on the body. The robot is connected by optical/electric cable of 100m long to the control unit on mother ship.
Prototype has an ultrasonic transponder system which is long
base line type as a navigation device.    It also has an underwater TV camera with ultrasonic ranging device at the end of the manipulator on the body.

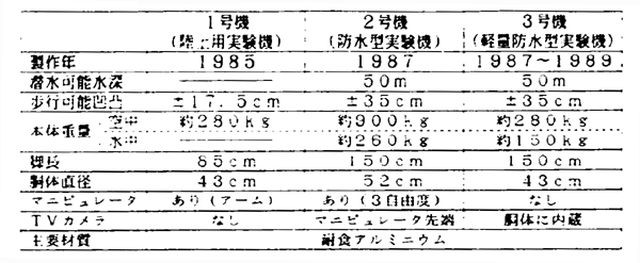

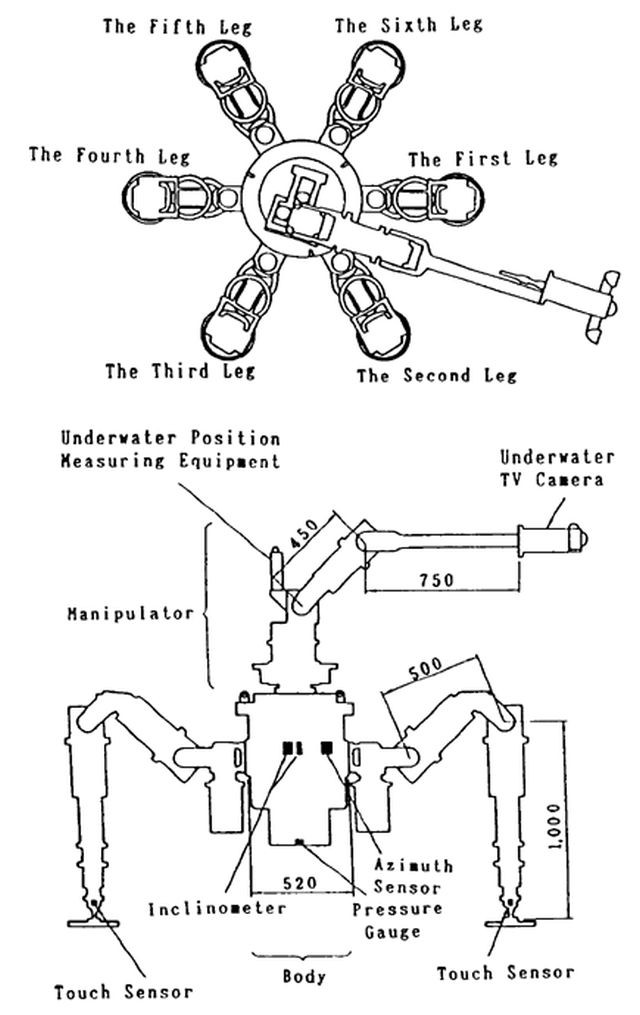

Main dimensions and the positions of the sensors are shown in Fig.2 and the specifications in Table 1.

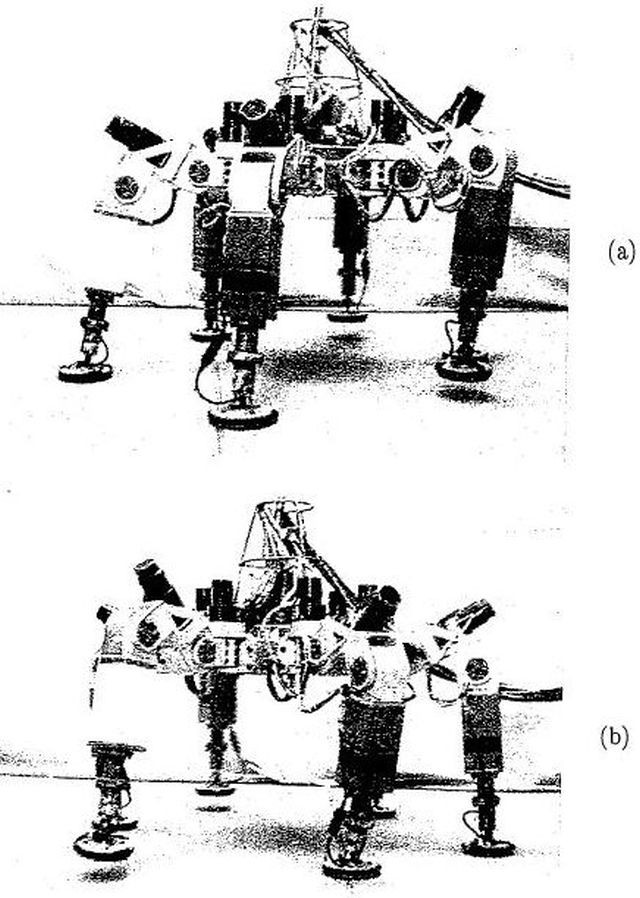

5.1    Description of the Robot System
The Port and Harbour Research Institute has constructed three models of six legged underwater walking robots. This series of experiments has been conducted on the first model. The AQUAROBOT hardware system consists of a main body and six radially symmetrically located legs. Each leg, made of anti-corrosive aluminum, has three degrees of freedom. The axis of the first joint is vertical and those of the second and third joints are horizontal. A disk-shaped foot is connected through the bottom limb of a leg through a passive spherical joint. One tactile sensor is attached to each foot. Each side of the hexagonal body is 30 centimeters long. The limbs of a leg are 14, 25, and 60 centimeters in length respectively. The motors for the second and third joints are mounted inside the limbs and, through harmonic gears and bevel gears, directly drive the limbs. This design allows their weights to be distributed over legs and makes water-tight structures easy. The powers of the first, second, and third motors are 80,120, and 120 watts respectively. The total weight of AQUAROBOT in the air is 280 kilograms.
The control computer is an NEC PC-9821Xt/C1OW based on a Pentium/90MHz CPU. The software system was written in C++. The sampling time is 50 milliseconds.

Computer simulation.

The project started in 1984 and made 3 models.

See other early Underwater Robots here.

The ART Project’s Nuclear Inspection Centaur Robot

After the earthquake last year and the resulting damage to the Fukushima nuclear plant, observers criticized Japan’s lack of preparedness. In particular, many felt that the Japanese robotics sector’s focus on expensive humanoids had squandered time and resources better spent on more specialized robots.  However, this isn’t totally accurate.  The Japanese government, corporations, and universities have been working on robots for just this sort of problem for decades.  Back in the 1980's the Japanese government invested 20 billion JPY (still less than $100 million dollars at the time) into a massive eight-year program to build three types of advanced robots for hazardous environments.

The ART (Advanced Robotics Technology) Project had goals that were too big for any one institution to achieve, so a consortium called ARTRA (Advanced Robotics Technology Research Association) was formed. Financed and controlled by the Agency of Industrial Science and Technology, ARTRA brought two major government organizations, the Mechanical Engineering Laboratory (MEL; now known as AIST) and the Electrotechnical Laboratory (ETL), together with 18 corporations under the same banner, along with the support of academia.

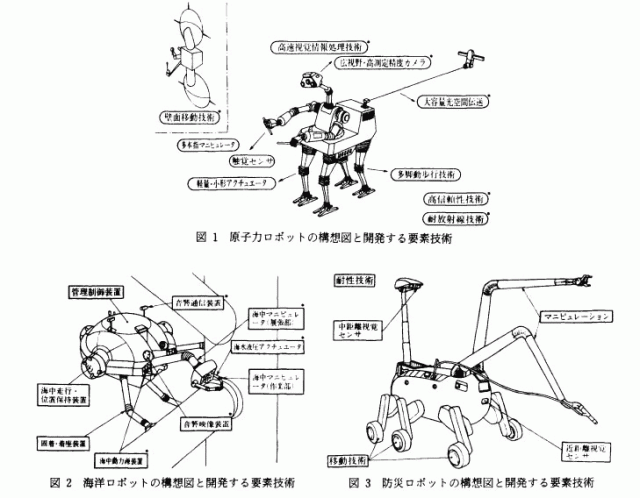

The ART robots were designed for three major areas: nuclear plants, undersea oil rigs, and a third for disaster prevention in refineries.

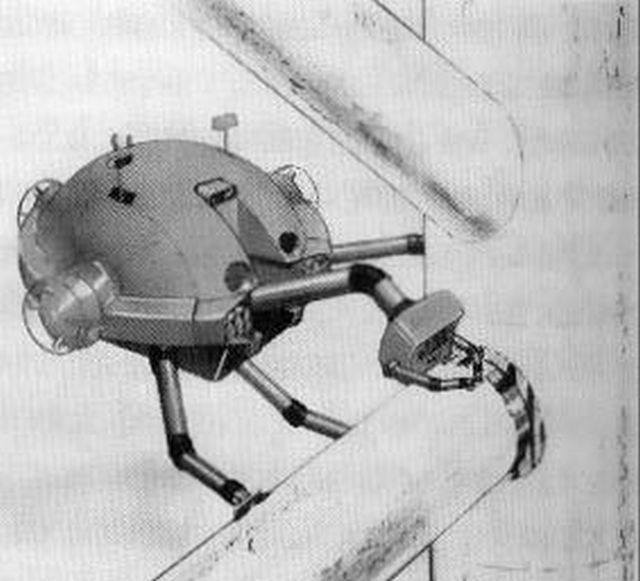

The undersea robot looked like one of the pods from 2001: A Space Odyssey, with multiple arms and manipulators. It would have to function 600 feet underwater, in tides moving at 2 knots, and in very poor visibility.  Finally, the disaster response robot would put out fires with a hose, move on six legs (each ending with a wheel) and had an arm for closing valves. It would have to work for thirty minutes despite temperatures in the range of 400 degrees (750 degrees Fahrenheit).

For more on the 1984-93 Japanese ART Project, see here.

See other early Underwater Robots here.

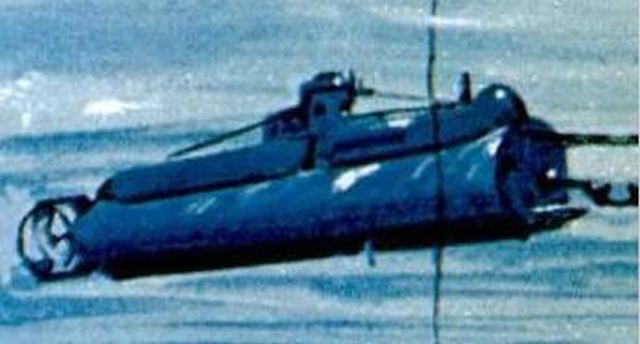

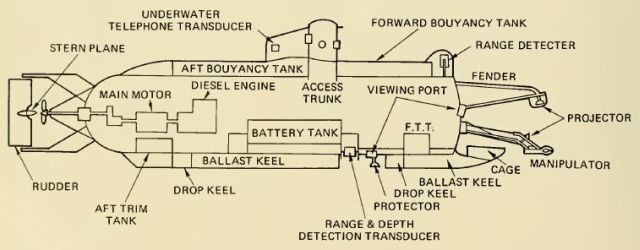

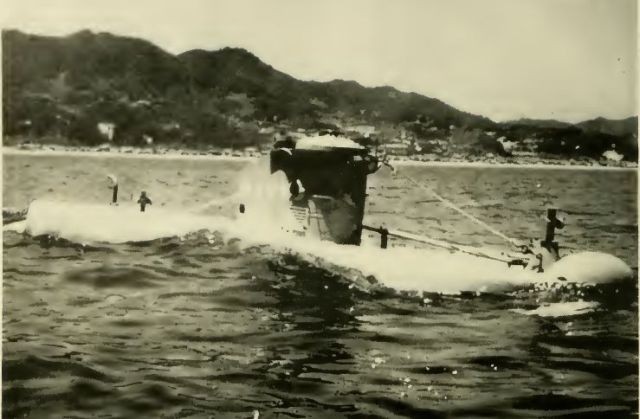

1964 – Yomiuri Submersible by Yomiuri Shimbu Newspaper and Kawasaki Heavy Industries.

Image source: Manned Submersibles, Frank Bushby, 1976.

The manipulator has six degrees of freedom.

See other early Underwater Robots here.

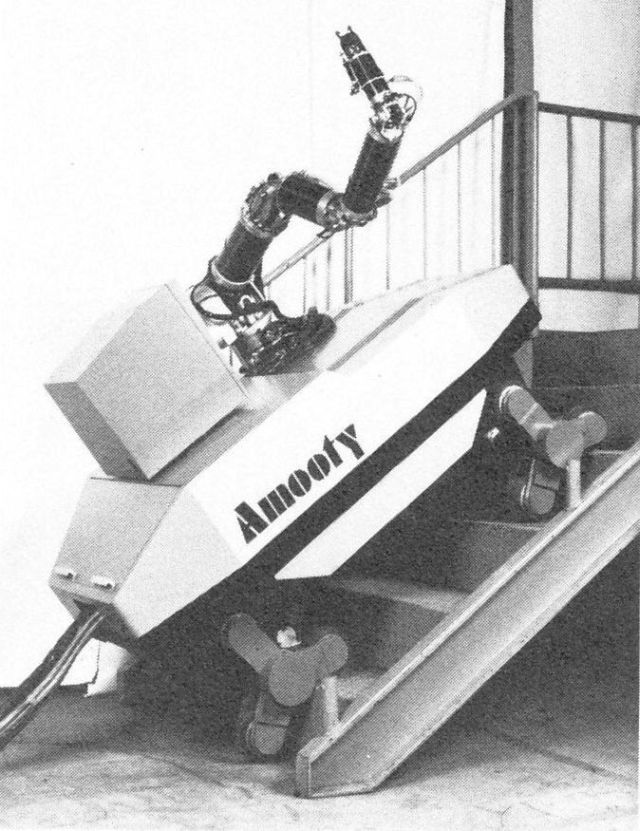

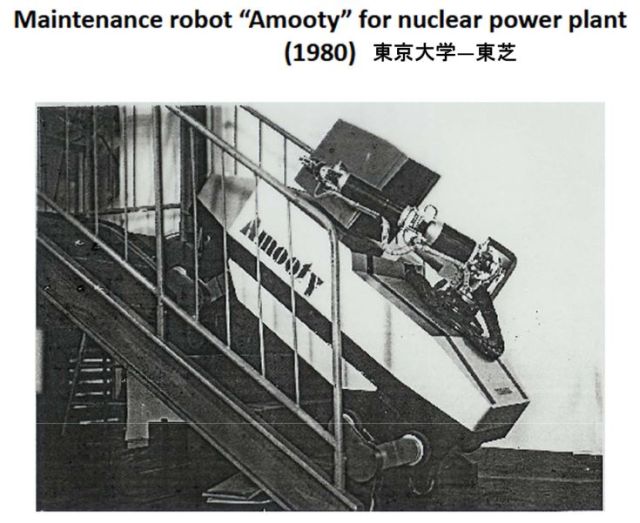

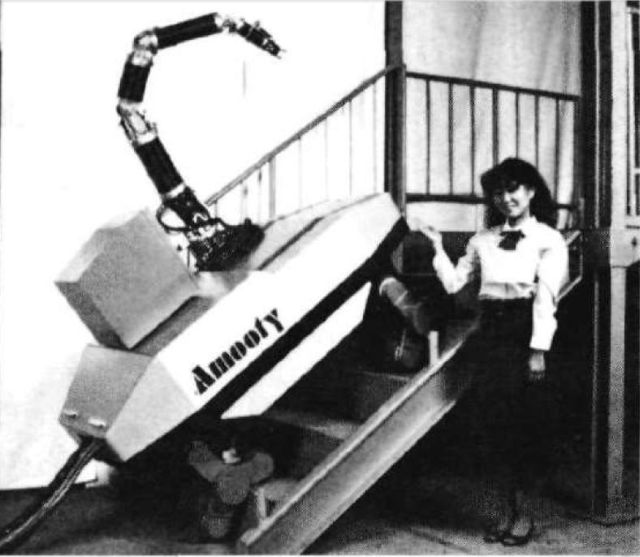

1985 – Nuclear Inspection Robot "AMOOTY" climbing stairs in a mock-up of a nuclear power plant.

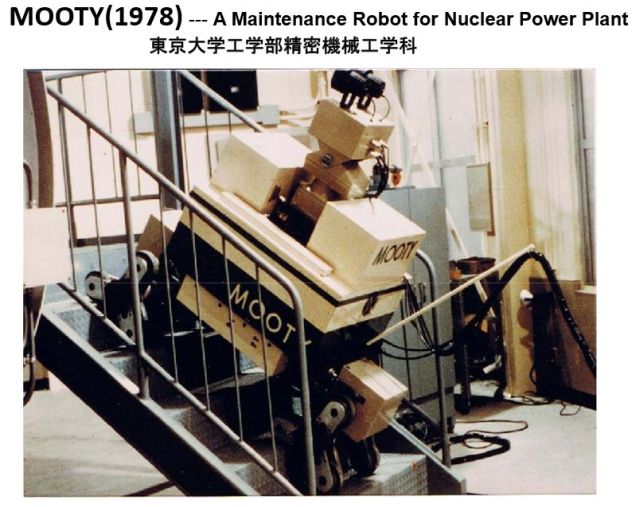

Before AMOOTY there was MOOTY. No manipulator arm here, just vision and star-wheel propulsion.

Text Source: Inside The Robot Kingdom, Frederik L. Schodt, 1988

If cleverly designed, a robot on modified wheels or tank treads can still have considerable maneuverability. Separate from the ART project, three of the ARTRA members—Mitsubishi, Toshiba, and Hitachi—have been building their own mobile robots for nuclear power plants. Hitachi and Mitsubishi have in the past produced experimental models with modified tank treads that either bend in the middle or reconfigure themselves for stair climbing. Toshiba has created a wheel-based design.
Near Yokohama, inside a mockup of a nuclear reactor that contains stairs, valves, and ladders, Toshiba has experimented with traditional crawler-type robots and even a robot that does nothing but climb ladders. Its current pride and joy is AMOOTY, partly funded by MITI money. AMOOTY (an acronym based on the names of the six men at the University of Tokyo who designed it) is a semi-"intelligent" robot with a vision system enabling it to navigate—a TV camera allows it to recognize specially placed symbols in the reactor and a laser beam measures distance. Instead of a traditional industrial-robot-style manipulator, AMOOTY uses one that looks like an elephant trunk with nine degrees of freedom—two more than the human arm.
The most novel aspect of the AMOOTY robot is its means of locomotion. Inspired, perhaps, by the old stair-climbing carts used by Venetian porters, each "wheel" is in the shape of a clover, with each "petal" of the clover containing a smaller, independent wheel. On flat ground the clovers do not turn—only the smaller wheels do. To climb a staircase, or cross over an obstacle, however, the larger clovers themselves are rotated. AMOOTY still has many problems. Its power is supplied by a cable, its speed is too slow, and it is too heavy and large. But it is a stable design. When engineers in a remote command room (watching through television cameras, with robot positions in the reactor displayed on computer screens as both outline and three-dimensional shapes) put AMOOTY through its paces, the "wheeled" robot lurches right up the stairs.
Professor Hiroyuki Yoshikawa of the University of Tokyo Mechanical Engineering Department led the team that worked with Toshiba to design AMOOTY. "In Japan we tend to neglect research on the basic purpose of our design," he says. "My specialty is design theory, and I consider design to be the science of function. For AMOOTY, for example, we used functional analysis to research the concept of maintenance in nuclear reactors, and came up with a system of locomotion and an arm that does not exist in nature."

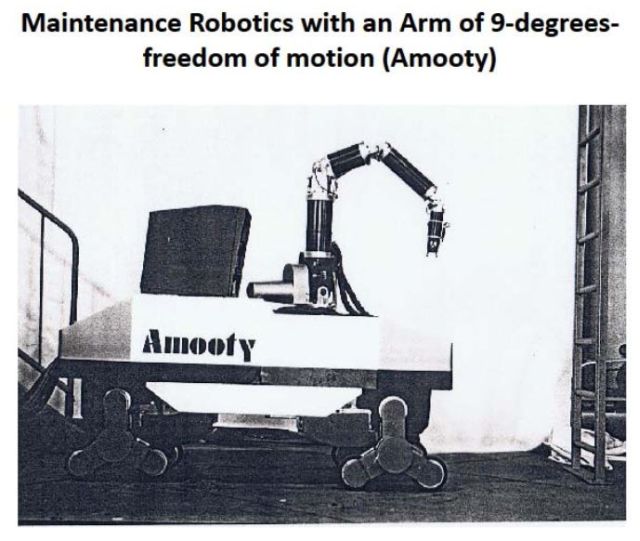

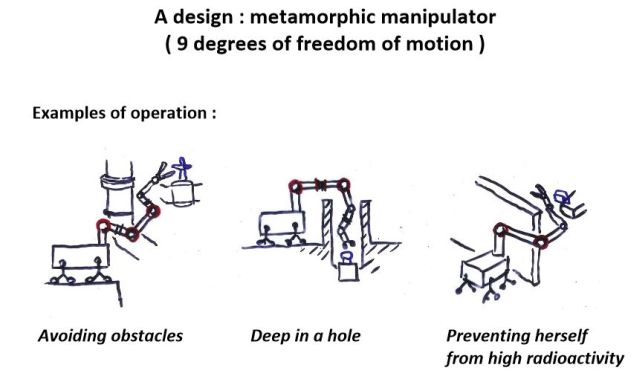

The manipulator arm had 9 degrees-of-freedom.

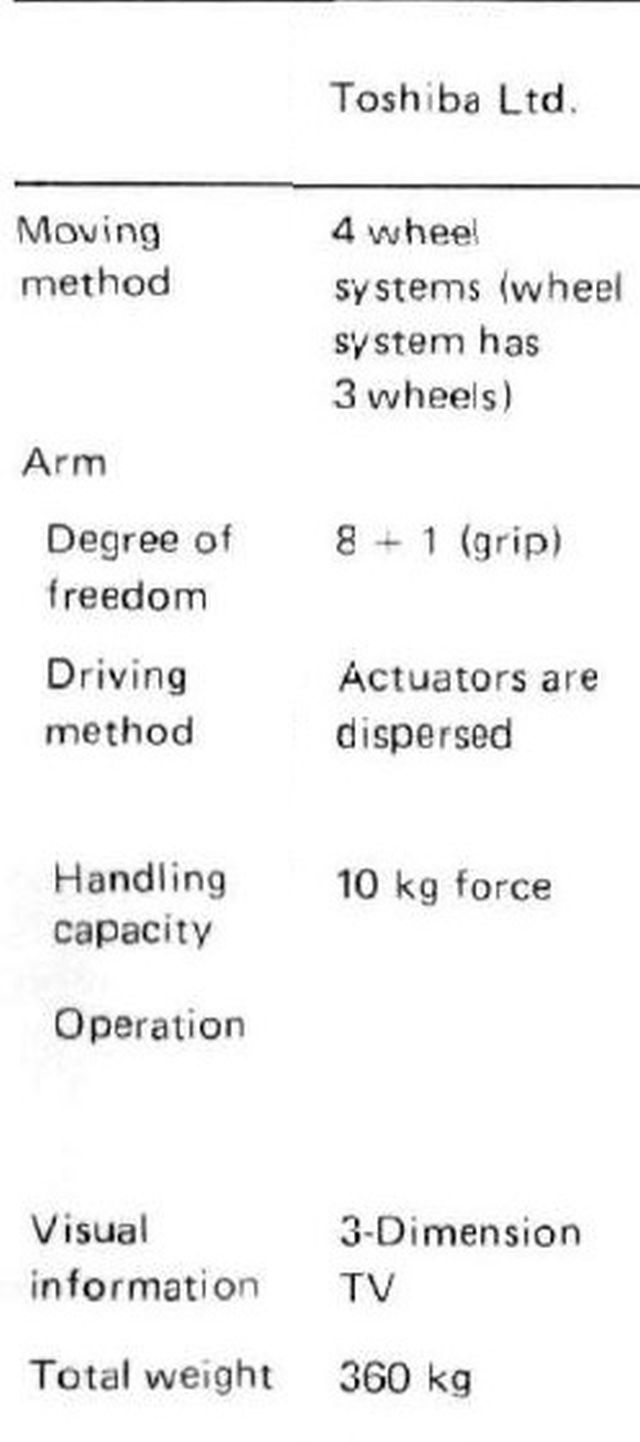

Brief technical specs of AMOOTY.

Interesting comment by Hiroyuki Yoshikawa, one of AMOOTY's developers:

Despite Japan’s leadership in robotics, nuclear plant operators assumed that robots would not be needed to deal with an accident. The Times quoted Hiroyuki Yoshikawa, an engineer and a former president of the University of Tokyo, as saying, "Instead, introducing them would inspire fear, they said. That’s why they said that robots couldn’t be introduced."

Even though Yoshikawa, a robotics expert, was among those who built a prototype called Mooty that was designed to handle high levels of radiation and navigate rubble that might be expected as a result of a nuclear accident, the robots were not put into production. Consequently, after the Fukushima accident, Japan had to rely "an emergency shipment of robots from iRobot, a company in Bedford, Mass., more famous for manufacturing the Roomba vacuum. On Friday, Tepco deployed the first Japanese-made robot, which was retrofitted recently to handle nuclear accidents, but workers had to retrieve it after it malfunctioned."

Yoshikawa told the Times that Japan’s rejection of robots designed to respond to nuclear accidents "was part of the industry’s overall reluctance to improve maintenance and invest in new technologies."

Source: Powermag

The only English written paper I found on AMOOTY is dated  1985. I don't  know how accurate the caption dates are on MOOTY (1978) and AMOOTY (1980).

T. Arai, H. Yoshikawa, M. Takano, S. Ozono, G. Odawara, T. Miyoshi, K. Shimo, and T. Mikami. A stair-climbing robot for maintenance: "AMOOTY". In Proc. of the Seminar on Remote Handling Equipment for Nuclear Fuel Cycle Facilities, pages 444-456, 1985.

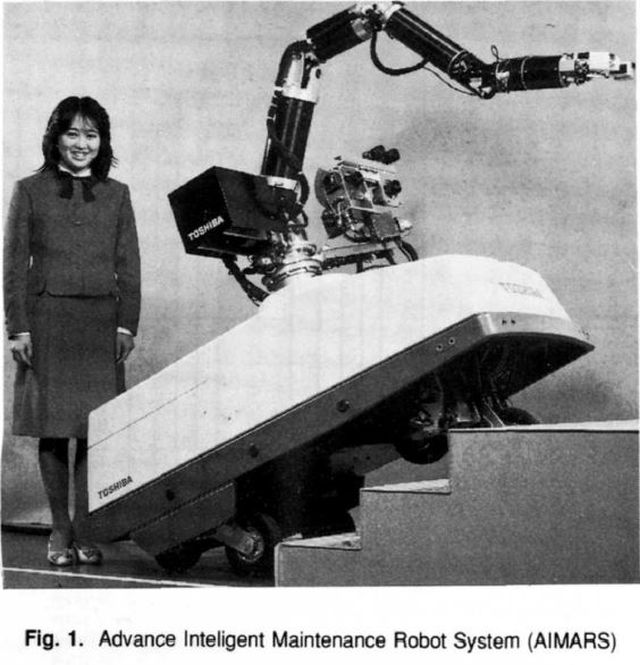

AMOOTY was further advanced by Toshiba and now called "AIMARS" – (Advanced Intelligent MAintenance Robot System).
